DGR Recycling Series DGR4000T280D 320t/h monoblock recycled asphalt mixing plant
- Model
- DGR4000T280D
Item specifics
- Rated capacity
- 320T/H
- RAP porportion
- 60-70%
- mixture storage
- By side/under mixer
Review
Description
TECHNICAL DATA
MODEL |
DGR4000T280D |
||
Rated Production Capacity | 320 t/h | ||
Cold Feeder Bin | Number × Volume | 6 × 18 m³ | |
RAP Cold Feeder Bin | Number × Volume | 3× 12 m³ | |
Dryer Drum | Diameter Ø | ø 2.8 m | |
Length | 12 m | ||
Fuel Type | Diesel Oil/ Heavy Oil / Nature Gas / Coal Powder | ||
Drying Capacity | |||
– Moisture Content 3% | 390 t/h | ||
– Moisture Content 5% | 320 t/h | ||
RAP Dryer Drum | Diameter Ø | ø 2.2 m | |
Length | 11 m | ||
Fuel Type | Diesel / Heavy Oil / Nature Gas | ||
Drying Capacity | |||
– Moisture Content 3% | 160 t/h | ||
– Moisture Content 5% | 140 t/h | ||
Bag Filter | Dust Filtering Method | (1st Stage) Pre-separator + (2nd Stage) Bag Filtering House | |
Mixing Tower | Screening | 6 | |
Screening Area | 58.7 m² | ||
Hot Bin Quantity | 6 + 1 | ||
Hot Bin Overall Volume | 75 m³ | ||
Aggregates Weighing | 5500 kg | ||
Filler Weighing | 700 kg | ||
Bitumen Weighing | 500 kg | ||
RAP Surge Area | 9 m³ | ||
RAP Weighing Hopper | 3000 kg | ||
Mixing Power | 2 × 75 kW | ||
Mixing Rated Volume | 5500 kg | ||
Mixing Capacity | 440 t/h | ||
Filler Scaling & Feeding | Screw Conveyor With Dual Frequency Conversion, Batching, Continuous Feeding To Mixer | ||
Bitumen Scaling & Feeding | Dynamic 2-Stage Measurement, High Pressure Uniformly Spray. | ||
Mixing type |
Double Shaft/ Twin Motor/ Synchro Twin Reducer |
||
Hot Mix Storage Bin Type | Under Mixer | ||
Hot Mix Storage Bin Capocity | （35 + 35）70 m³ | ||
Bitumen Supply System | |||
Filler Supply System | |||
Control System |
• DGLeap Control System 2.0ontrol System 2.0 • Large Screen Industrial Computer • PLC Touch Screen HMI • Laser Printer • Air-Conditioned Control Cabin |
||
ENVIRONMENT PERFORMANCE |
• Dust Density⩽20mg/Nm³ • Ringelmann Blackness Class 1 • Noise in Control Cabin ⩽70dB |
||
NORMAL OPERATION CONDITION | • Factory Standard • Industry Standard • National Standard • CE Standard • implement the highest standard | ||
The above specifications are for reference only. D&G Machinery reserves the right to make changes in engineering, design and improvement at any time without prior notice or obligation. | |||

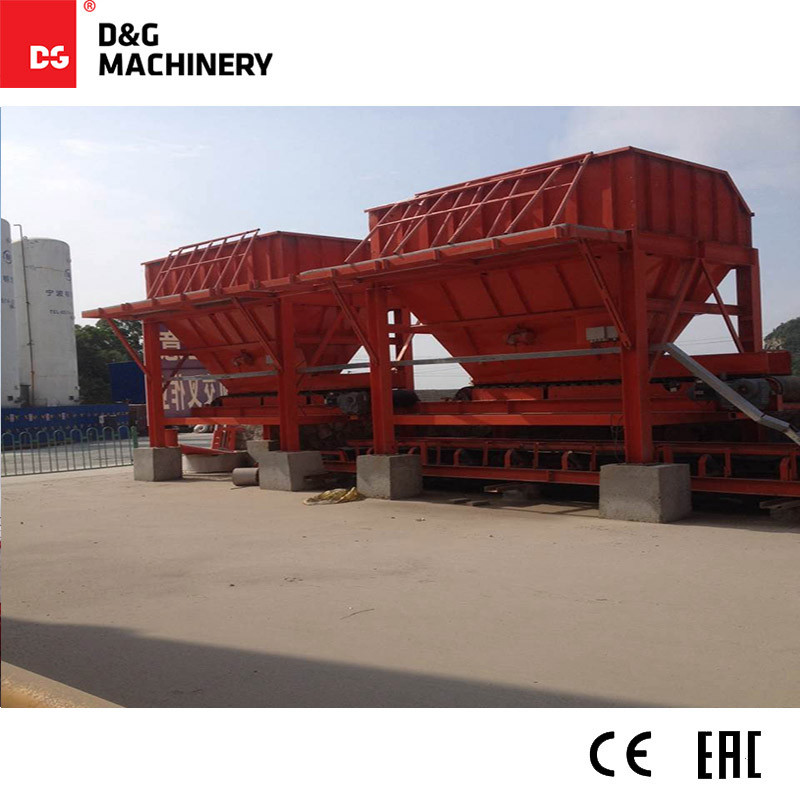

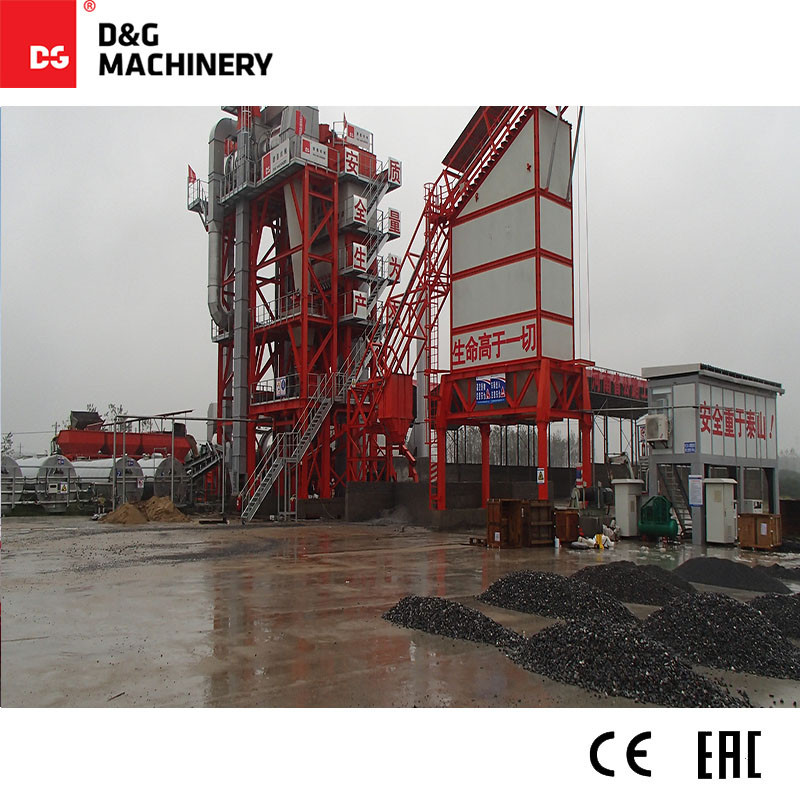

PRODUCT DISPLAY
